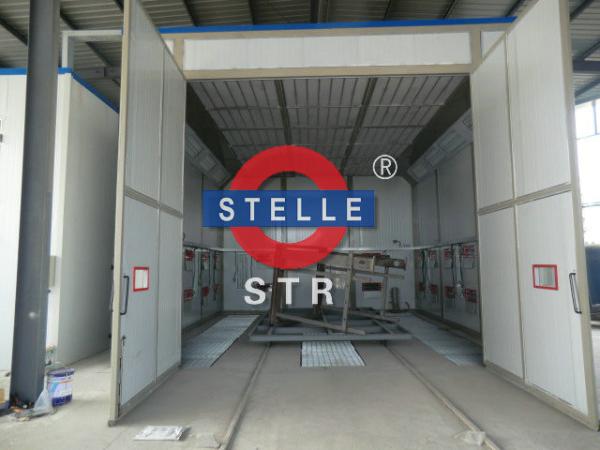

    Customized Spray Paint Booth Oven Electrostatic Painting Equipment Coating Vehicle

    Ask Lasest Price
    Brand Name : Stelle
    Model Number : STR-PK
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : Adjustable
    Delivery Time : 15 DAYS AGAINST PAYMENT
    • Product Details
    • Company Profile

    Customized Spray Paint Booth Oven Electrostatic Painting Equipment Coating Vehicle

    Customized Spray Paint Booth Oven Electrostatic Painting Equipment Coating Vehicle


    Paraments

    Booth Dimensions
    - Internal Size
    6900×4000×2800 mm (L×W×H)
    - External Size
    (without metal basement)
    7010×5650×3460 mm (L×W×H)
    Foundation and Floor
    - Loading Capacity of Galvanized Grating
    650 kg/wheel
    - Surface Area
    2 rows of grids, 3 rows of checkered steel plates
    - Metal Basement
    350 mm Height, optional mounting with or without civil work
    Fixed metal support
    - Drive-in Ramps
    2 units
    Wall and Door
    - Wall Panel
    0.426 mm thickness galvanized steel plate
    Double wall panels of galvanized steel sheet, thickness 50 mm, inside and outside white, insulated with Rock-wool, with tongue and groove interlocking System
    - Roof Panel
    0.426 mm thickness galvanized steel plate
    Double wall panels of galvanized steel sheet, thickness 50 mm, inside and outside white, insulated with Rock-wool, with tongue and groove interlocking System
    - Entry Door
    1 Unit, 3200×2700 mm (W×H), 2+1 panels folded structure, size 800×500 mm observation windows with tempered glass
    - Operator’s Door
    1 Unit, 800×2000 mm (W×H) , observation windows with tempered glass
    Pressure lock
    Lighting
    - Ceiling Lightings
    8 Units, each 4×18 W, total 576 W, LED lamps
    - Side Lightings
    Exclude
    - Brightness
    > 800 Lux
    - Protection Level
    IP55
    Filtration
    - Pre-filter
    Fiberglass, double filters, plate filter + pockets filter
    - Ceiling Filters
    EU5 Fine Filters, 6 Units
    - Floor Filters
    Fiberglass, Paint-Stop-Filters
    - Activated Carbon Filter Cabinet
    Exclude
    Ventilation System
    - Direct Drive Motor
    (Fresh Air)
    1×7.5 kW, 970 rpm, 380 V, 50 Hz, 3Ph, CE standard
    - Direct Drive Motor
    (Exhaust Air)
    1×7.5 kW, 970 rpm, 380 V, 50 Hz, 3Ph, CE standard
    - Fan Capacity
    25,000m³/h, 650 Pa
    - Air Flow Speed (no load)
    +/- 0.25 m/s in empty
    - Energy Recycling Cabinet
    Exclude
    - Air Ducts
    8 meters straight ducts, 2 elbows, 2 reducers
    Heating System
    - Heating Exchanger
    Stainless Steel 1Gr18Ni9Ti SUS304
